Brand
Swanevelder Elektries

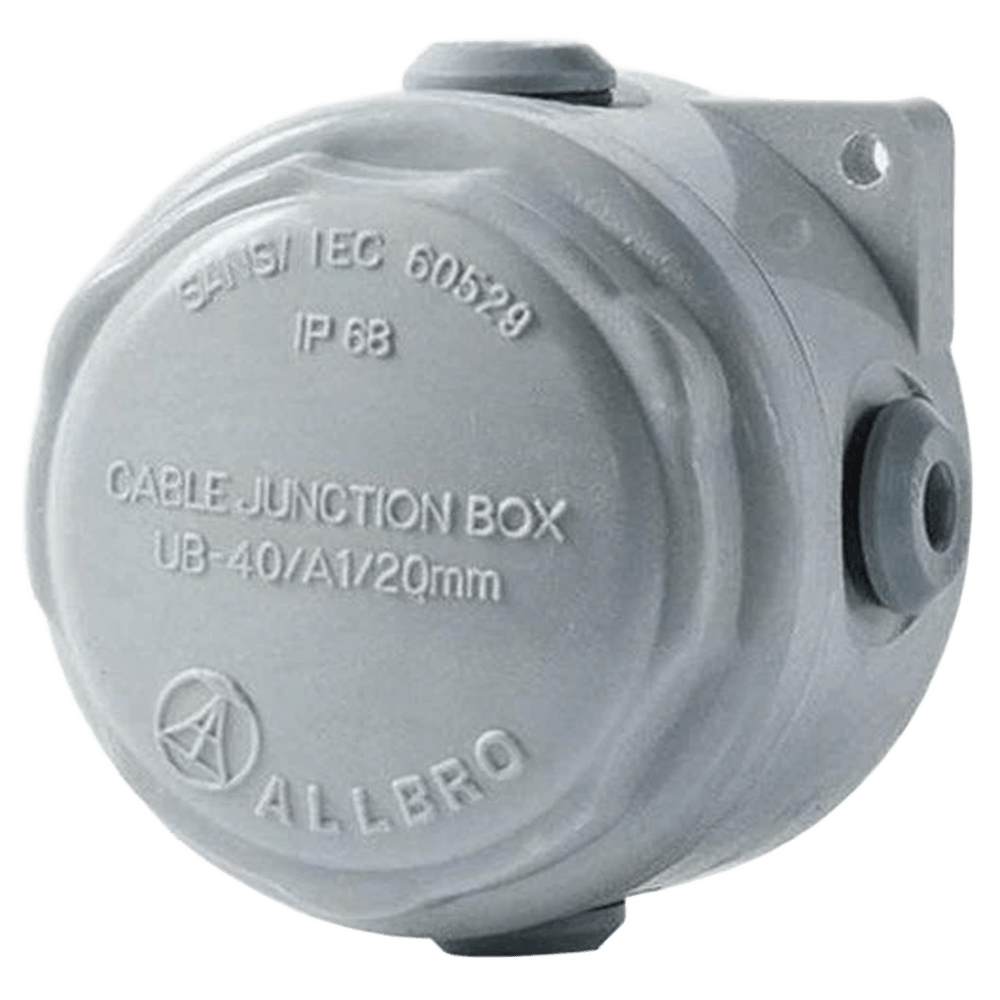

20mm CCG UTILITY BOX
20mm CCG UTILITY BOX
| SKU | SK01241 |
Visa · Mastercard · EFT / Bank Transfer
Payment will only be required once the quotation is confirmed.
-
Flexible cable routing: Accepts up to four 20 mm entries, fully compatible with CCG cable glands—no drilling or tapping needed
-
High ingress protection: Rated IP66 and IP68 with approved glands—sealed against dust, water jets, and temporary immersion
-
Durable GRP enclosure: Constructed from impact-, UV-, and corrosion-resistant glass-reinforced polyester, with IK10 mechanical protection
-
Screw-on lid with tamper lock: Lid secured via threads; can be locked using a special key to prevent unauthorized access
-
Safety plus: Equipped with a lid retention lanyard and completely non-metallic body—reducing corrosion and increasing operator safety
-
Internal earthing system: Continuity ring ensures all cable entries and optional internal DIN-rail terminals are earthed
-
Mountable DIN support: Supplied with internal studs to attach DIN-rail-mounted terminal blocks—great for tidy wiring
