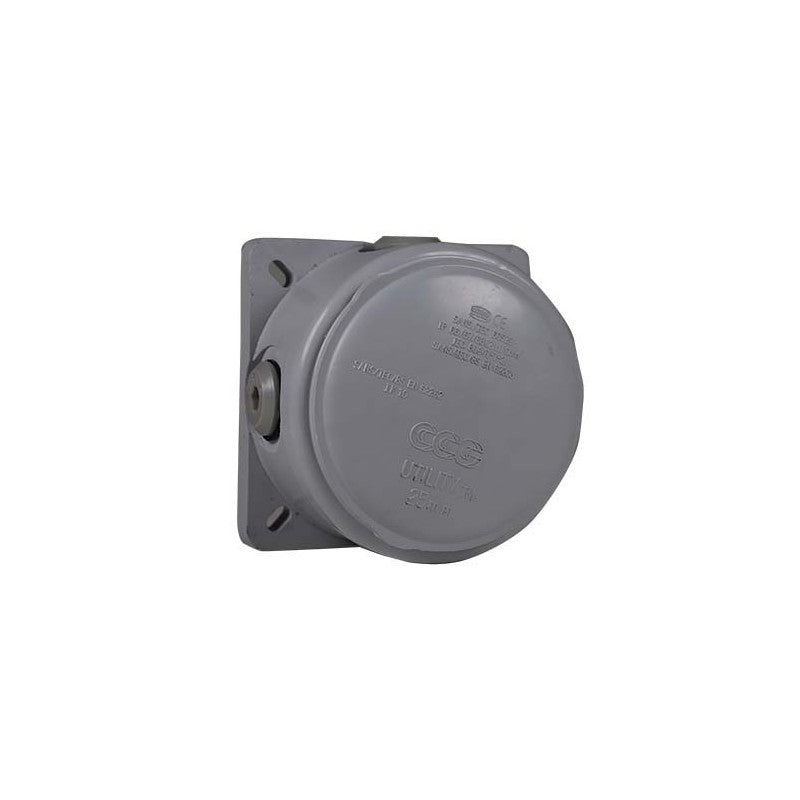

25mm CCG UTILITY BOX

A versatile and rugged junction box designed for industrial, mining, and outdoor electrical applications:

• Multi‑way versatility: One box supports 1, 2, 3, or 4 cable entries—ideal for branching circuits and reduces stock needs

• 25 mm conduit entries: Ready to accept standard sealed cable glands—no drilling or tapping required

• IP66/IP68 rated: Dust-tight and resistant to powerful water jets; achieves full immersion protection when fitted with CCG-approved glands

• High-impact GRP shell: Made from corrosion-resistant, UV-stabilised glass-reinforced polyester with IK10 mechanical protection .

• Secure screw-on lid: Tamper-resistant with optional lock, plus a safety lanyard to prevent accidental loss

• Internal earthing & earth continuity: Built-in earth studs link all gland entries and the grounding rail

• DIN-rail ready: Comes with mounting studs for adding terminal block rails without additional hardware

• No exposed metal parts: Entire assembly is non-metallic, reducing corrosion risk and enhancing operator safety

• Wide temperature range: Rated for extreme environments (–60 °C to +110 °C)

• Sealed security: Lid is threaded and uses a special key to lock—ideal for tamper-proof installations
