SCHNEIDER 32A 3P 3KA

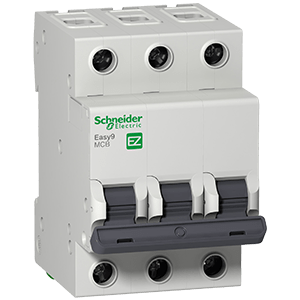

Schneider Easy9 Circuit Breaker 3 Pole C-Curve Din 32A 3kA 230V EZ9F53332

• This Easy9 product is a low voltage miniature circuit breaker (MCB).
• It is a 3P circuit breaker with 3 protected poles and 32A In rated current and C tripping curve.
• The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard.
• It is compliant with IEC 60898-1 standard.
• This product has a protection against short circuit and a protection of cable against overloads.
• It has a fault tripping indication on the front panel by the position of the handle (O-I engraved).
• This product is dedicated for residential and small commercial buildings.
• It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles.
• The Ue operational voltage is 400VAC.
• The Ui rated insulation voltage is 500VAC.
• The Uimp rated impulse withstand voltage is 4kV.
• The operating frequency is 50Hz or 60Hz.
• It can be mounted on DIN rail for modular installation.
• Its width is 6 pitches of 9mm. The product colour is light grey (RAL7035).
• The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm. The weight is 0.3kg.
• According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
• The operating temperature is -5°C to 60°C.
• The storage temperature is -40°C to 85°C.
