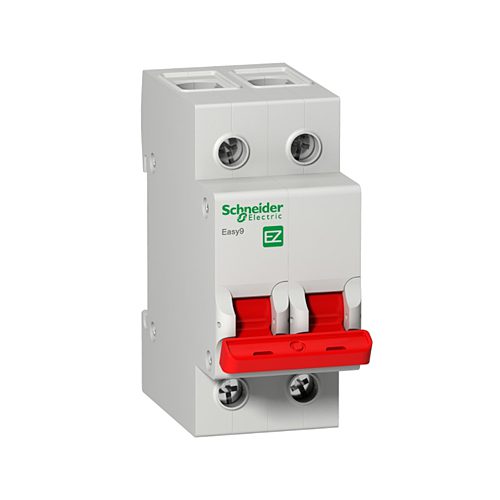

SCHNEIDER 63A 2P ISOLATOR 3KA

SCHNEIDER EASY9 ISOLATOR

• 63 AMP
• 2 POLE
• 3KA
• DIN RAIL
• CODE: EZ9S16263

PRODUCT FEATURES

• This Easy9 is a modular and reliable switch disconnector.
• This switch disconnector is used for control (opening and closing of circuits under load).
• This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits.
• It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard.
• It is a 2P switch disconnector with 63A rated current.
• Electrical endurance goes up to 1500 cycles, and mechanical endurance goes up to 8500 cycles.
• The Ue rated operational voltage is 400VAC.
• The Ui rated insulation voltage is 500VAC.
• It has a Uimp rated impulse withstand voltage of 4kV.
• The operating frequency is 50Hz or 60Hz.
• It can be mounted on DIN rail for modular installation.
• The dimensions are (W) 36mm x (H) 81mm x (D) 66.5mm.
• The color is light grey (RAL7035).
• The degree of protection is IP20.
• The operating temperature is -5°C to 55°C.
• The storage temperature is -5°C to 70 °C.
• This product complies with IEC 60947-3 standard.
